Three Phase Smart Meter
Product Introduction:

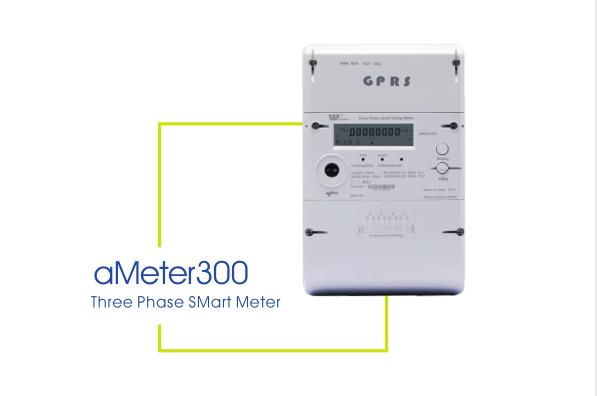

aMeter300 is a three phase class 1 for active energy and class 2 for reactive smart meter that has been designed to meet the latest IEC and EN standards and requirements of electricity utilities.
Main features:
Class 1/class B(direct connection), class 0.5s / class C(indirect connection) for active energy, class 2/class A for reactive energy. Reference voltage 120V, 100V, 63.3V, 57.7V. Current range 5(100)A(direct connection) or 1(10)A(indirect connection). Four elements measurement. Support 3P3W and 3P4W. Bi-directional measurement. Multi-Rate. IEC1107 optical port which uses DLMS/COSEM protocol. RS-485 and RS-232 port which uses DLMS/COSEM protocol. Plug&play remote communication module and support PLC/RF/2G/3G/4G module. Protection degree IP54. The meter supports load profile, replaceable battery, cover open and anti-magnetic and bypass detect functions.It has breaker for remote control.
aMeter300 is a three phase class 1 for active energy and class 2 for reactive smart meter that has been designed to meet the latest IEC and EN standards and requirements of electricity utilities.
Main features:
Class 1/class B(direct connection), class 0.5s / class C(indirect connection) for active energy, class 2/class A for reactive energy. Reference voltage 120V, 100V, 63.3V, 57.7V. Current range 5(100)A(direct connection) or 1(10)A(indirect connection). Four elements measurement. Support 3P3W and 3P4W. Bi-directional measurement. Multi-Rate. IEC1107 optical port which uses DLMS/COSEM protocol. RS-485 and RS-232 port which uses DLMS/COSEM protocol. Plug&play remote communication module and support PLC/RF/2G/3G/4G module. Protection degree IP54. The meter supports load profile, replaceable battery, cover open and anti-magnetic and bypass detect functions.It has breaker for remote control.
