Electric Meters
Single Phase Electricity Meter
Product Introduction:

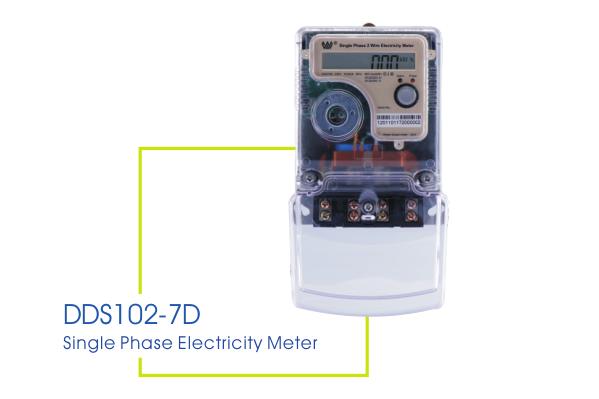

DDS102-7D is a single phase two wires class 1 static electricity meter that has been designed to meet the latest IEC standards and requirements of electricity utilities.
Main features:
Class 1 for active energy, class 2 for reactive energy. Reference voltage 230V or 120V. Current range 5(80)A or 5(100)A. Both phase and neutral measurement. Bi-directional measurement. Multi-Rate. IEC1107 optical port which uses IEC62056-21 protocol. RS-485 port which uses IEC62056-21 protocol. Protection degree IP54. The meter supports load profile, internal battery, cover open and anti-magnetic detect functions.
