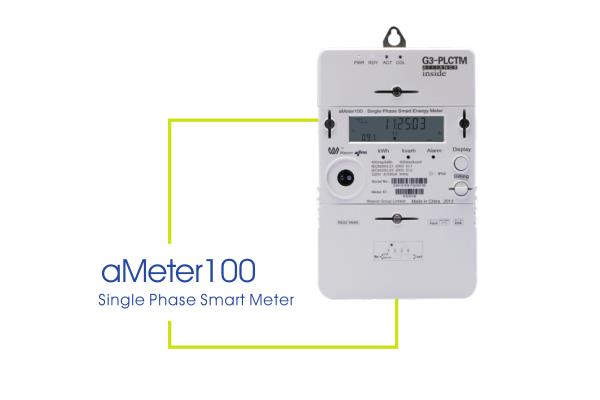

Single Phase Smart Meter
Product Introduction:
aMeter100 is a single phase two wires class 1 for active energy and class 2 for reactive smart meter that has been designed to meet the latest IEC and EN standards and requirements of electricity utilities.
Main features:
Class 1/class B for active energy, class 2/class A for reactive energy. Reference voltage 230V or 120V. Current range 5(80)A or 5(100)A. Both phase and neutral measurement. . Bi-directional measurement. Multi-Rate. IEC1107 optical port which uses DLMS/COSEM protocol. RS-485 and RS-232 port which uses DLMS/COSEM protocol. Plug&play remote communication module and support PLC/RF/2G/3G/4G module. Protection degree IP54. The meter supports load profile, replaceable battery, cover open and anti-magnetic and bypass detect functions.It has breaker for remote control.
